Polydrain PPIC Inspection Chamber Bases & Risers (320mm & 450mm)
Engineered for reliability, ease of groundworks, and full compliance with UK drainage standards, the Polydrain range of 320mm and 450mm Polypropylene Inspection Chamber (PPIC) bases and risers provides a robust, modular foul and surface water inspection solution.
Manufactured from durable, chemical-resistant virgin polypropylene, these modular units eliminate the labor, curing time, and structural cracking associated with traditional wet-cast concrete ring manholes. From compact domestic patios to multi-inlet adoptable-standard groundworks, Polydrain chambers deliver watertight integrity, hydraulic efficiency, and straightforward on-site assembly.
Key Features & Benefits
-
Smooth Invert Channels for Optimal Flow: Factory-formed inverts ensure smooth hydraulic transition and eliminate snag points, drastically reducing blockages and self-cleansing maintenance.
-
Modular, Push-Fit Stacking: Lightweight riser rings stack securely using elastomeric sealing rings, making adjustments to finished ground levels fast and clean without wet trades.
-
Flexible Inlet Configurations: Bases feature factory-blanked 110mm or 160mm inlets with pre-fitted captive seal sockets. Simply core out or knock through only the connections required, keeping unused lines completely watertight.
-
Tested Chemical & Temperature Resistance: Built to handle aggressive soil conditions, groundwater fluctuations, domestic effluent, and high-temperature domestic discharge.
-
Full Regulatory Compliance: Fully compliant with BS EN 13598-1 and Building Regulations Approved Document H (foul and surface water drainage).
320mm Shallow Inspection Chamber (SIC) Range
Designed primarily for shallow domestic drainage runs up to 600mm deep (extendable to a maximum of 1.0m under standard domestic non-adoptable guidelines).
-

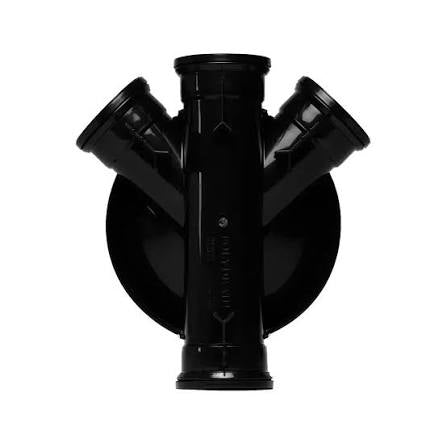

Base Configuration:
-
Straight-through 110mm main channel with two 45° side inlets.
-
Captive ring-seal sockets suitable for all standard 110mm PVCu underground drainage pipe.
-
Supplied with blanking plugs for unused side inlets.
-
-

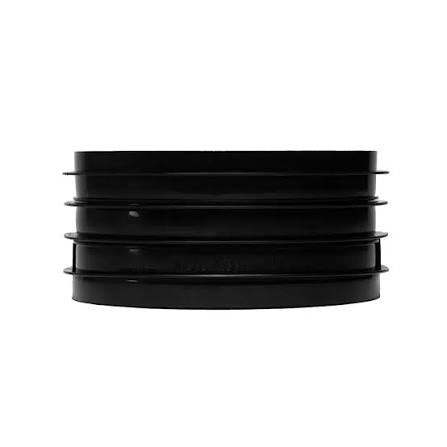

Riser Sections:
-
Nominal height increments of 135mm to 200mm (cut to length on-site using standard rib guides).
-
Ribbed external wall profile anchors securely into pea gravel or granular backfill, preventing flotation in high water tables.
-
-
Typical Uses: Domestic extensions, garden drainage runs, shallow foul connections, patios, and pedestrian walkways.
450mm Deep Inspection Chamber Range
Engineered for deeper installations up to 1.2m (or up to 3.0m when fitted with an Approved Document H restrictor ring). Suitable for multi-branch domestic and light commercial drainage networks.
-
Base Configurations:
-
110mm Multi-Inlet Base: Straight-through 110mm main channel with 4x branch inlets (2x 45° and 2x 90°) for versatile junction layout.
-
160mm Multi-Inlet Base: 160mm main run with 110mm / 160mm branch options for higher-capacity surface water or commercial foul lines.
-
Heavy-duty profile designed to withstand standard trench compaction.
-
-
Riser Sections:
-
315mm / 395mm effective depth per riser, stackable to final invert depth.
-
Ribbed external reinforcing bands provide high hoop strength and positive anchoring in granular embedment.
-
-
Typical Uses: Driveways, shared private foul runs, adoptable and commercial junctions, and deeper domestic drainage layouts.
Specification & Compatibility Chart
| Component | Nominal Internal Ø | Main Channel Size | Branch Inlets | Max Permissible Depth | Embedment Requirement |
|---|---|---|---|---|---|
| 320mm Chamber Base | 320mm | 110mm | 2 × 45° (110mm) | 0.6m (Standard) / 1.0m (Max) | 100mm Type 1 or pea gravel surround |
| 320mm Riser Ring | 320mm | N/A | N/A | Set to finished ground level | Granular backfill up to frame bedding |
| 450mm Chamber Base (110mm) | 450mm | 110mm | 4 × Inlets (45° / 90°) | 1.2m (3.0m with Restrictor) | 100mm–150mm Class 6N / pea shingle |
| 450mm Chamber Base (160mm) | 450mm | 160mm | 2 × 110mm / 160mm | 1.2m (3.0m with Restrictor) | 100mm–150mm Class 6N / pea shingle |
| 450mm Riser Ring | 450mm | N/A | N/A | Modular stack to depth | Compaction in max 150mm layers |
Groundworker & Installation Best Practice
-
Bedding: Bed chamber bases on a minimum 100mm layer of compacted granular material (10mm single-size pea gravel or Type 1 crushed stone depending on ground conditions). Ensure the base is level before connecting pipework.
-
Joint Lubrication: Always use standard pipe silicone or silicone aerosol lubricant on the riser sealing rings. Never force dry seals, as twisted or pinched rings will cause joint failure under air/water pressure testing.
-
Backfilling: Backfill uniformly around the stacked risers with granular material in layers not exceeding 150mm to prevent voiding and lateral movement.
-
Safety & Building Control: For any 450mm chamber exceeding 1.2 metres in depth, install an internal restrictor ring to reduce the clear opening to 350mm, ensuring full compliance with Building Regulations Part H and site safety audits.
